Manufacturer
Manufacturer: XFX
Model Number: RX-69XTAWBD9
Product Name: AMD Radeon™ RX 6900 XT

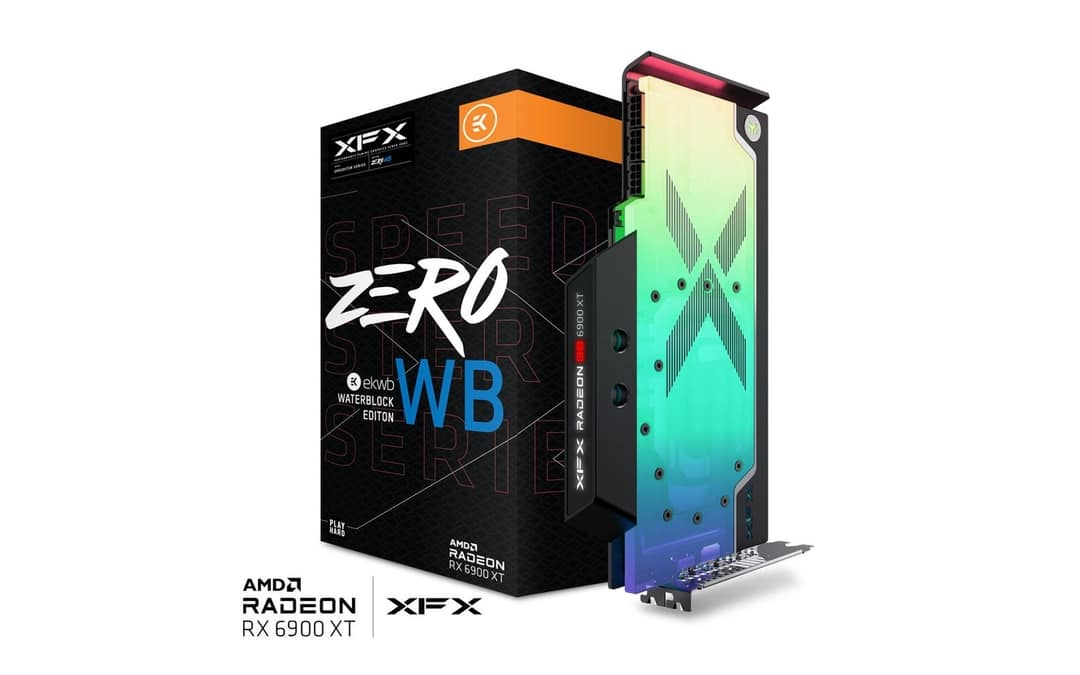

Product Description: XFX Speedster ZERO AMD Radeon™ RX 6900XT EKWB RGB Waterblock Limited Edition Gaming Graphics Card with 16GB GDDR6, AMD RDNA™ 2
Short Description : XFX Speedster ZERO AMD Radeon™ RX 6900XT EKWB RGB Waterblock Limited Edition with 16GB GDDR6
Launch Date: Sep,2021
UPC Number: 840191500046
Specifications
Bus Type: PCI-E 4.0
Clock Speeds:
Base clock Up to: 2200 MHz
Game Clock Up To: 2375 MHz*
Boost clock Up to: 2525 MHz**
Stream Processors: 5120
Compute Units: 80
Memory Bus: 256 bit
Memory Clock: 16 Gbps
Memory Size: 16 GB
Memory Type: GDDR6
Card Profile: Dual Slot
Thermal Solution: Waterblock w/ RGB
*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Outputs
DisplayPort: 1.4 with DSC
HDMI™: 2.1 VRR and FRL
Output : Display Port 2
Output : HDMI 1
Output: USB-C 1
Requirements
External Power: 3x PCI-E 8 pin connections
Minimum Power Supply Requirement: 850 watt
XFX Recommended Power Supply: XFX 1000W PSU
Certifications
RoHS
Package Contents
Installation Guide: 1
Estimated Dimensions & Weights
Card Dimension (cm) 30 x 16 x 2.5
Card Dimension (inch) 11.81 x 6.30 x 0.98
Master Carton Dimensions (cm) 46 x 39.5 x 47.5
Master Carton Dimensions (inch) 18.11 x 15.55 x 18.7
Master Carton Weight (Kg) TBC
Master Carton Weight (lb) TBC
Package Dimensions (cm) 44.5 x 23.5 x 12.5
Package Dimensions (inch) 17.51 x 9.25 x 4.92
Package Weight (Kg) 2.53 est.
Package Weight (lb) 5.58 est.
Units/Carton 6
Technologies
AMD RDNA™ 2 Architecture
DirectX® 12 Ultimate
Hardware Raytracing
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology*
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
AMD FidelityFX*
Radeon™ Image Sharpening*
Radeon™ Anti-Lag*
Radeon™ Software
Game Driver Optimizations
OpenGL Support
OpenCL Support
* Not compatible with Windows 7. For more information on Radeon technologies, visit: AMD.com/gamingdetails
Key Features
Advanced 7nm GPU
PCI Express 4.0 Support
Radeon Image Sharpening
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
AMD Virtual Super Resolution (VSR)
AMD Relive
AMD FreeSync 2 HDR
AMD Frame Rate Target Control (FRTC)
AMD Eyefinity multi-display technology
AMD Radeon Adrenalin Software
AMD WattMan
Displayport 1.4 w/ DSC
Dolby TrueHD and DTS-HD Master Audio Support
OpenGL Support
OpenCL Support
Downloads
FEATURES
BUILT FOR THE GAMER
HIGHEST BUILD QUALITY

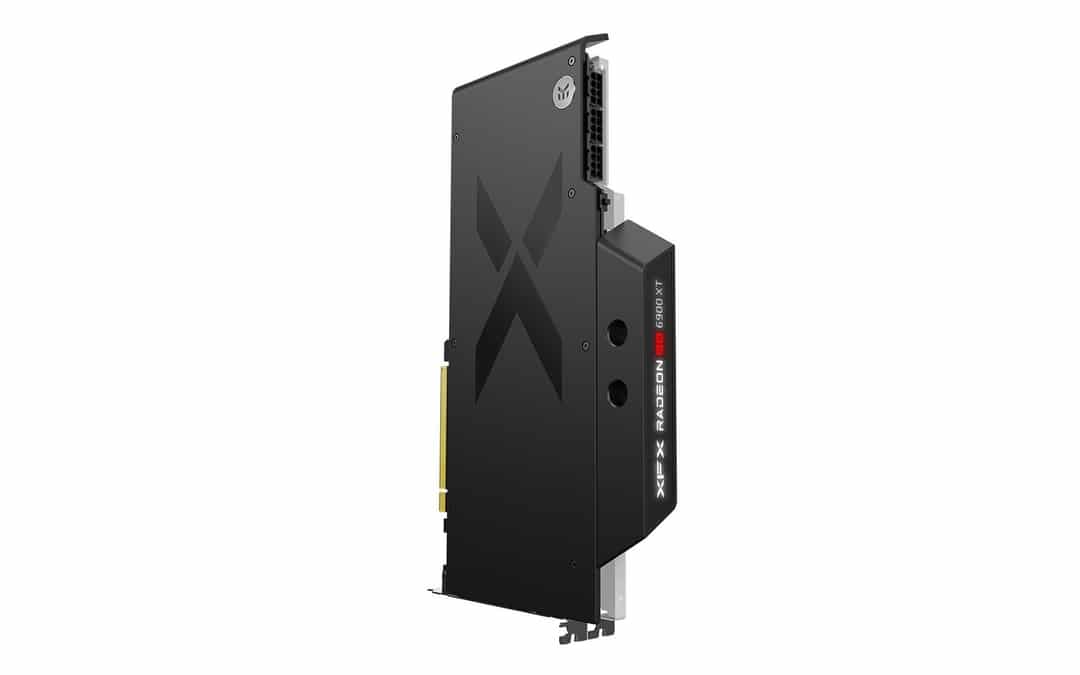

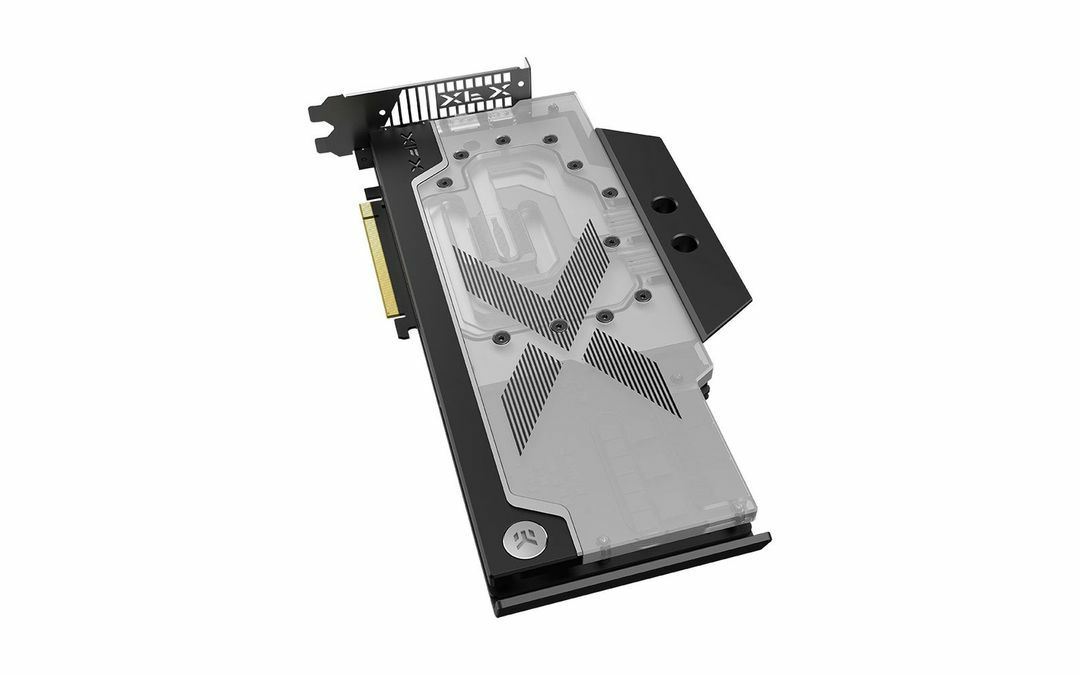

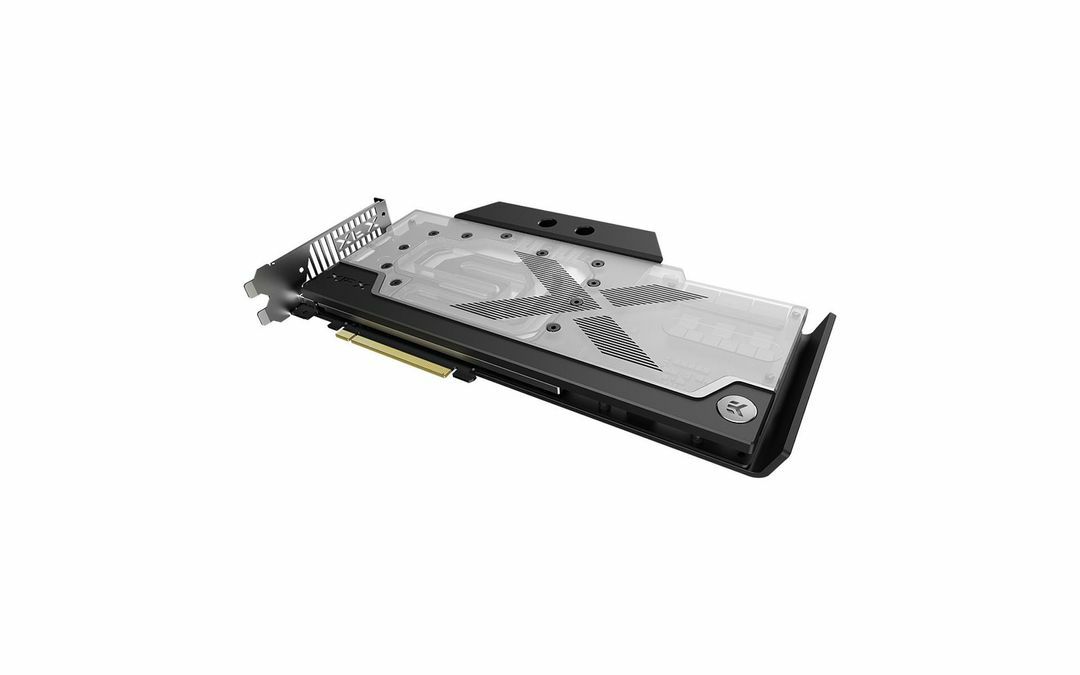

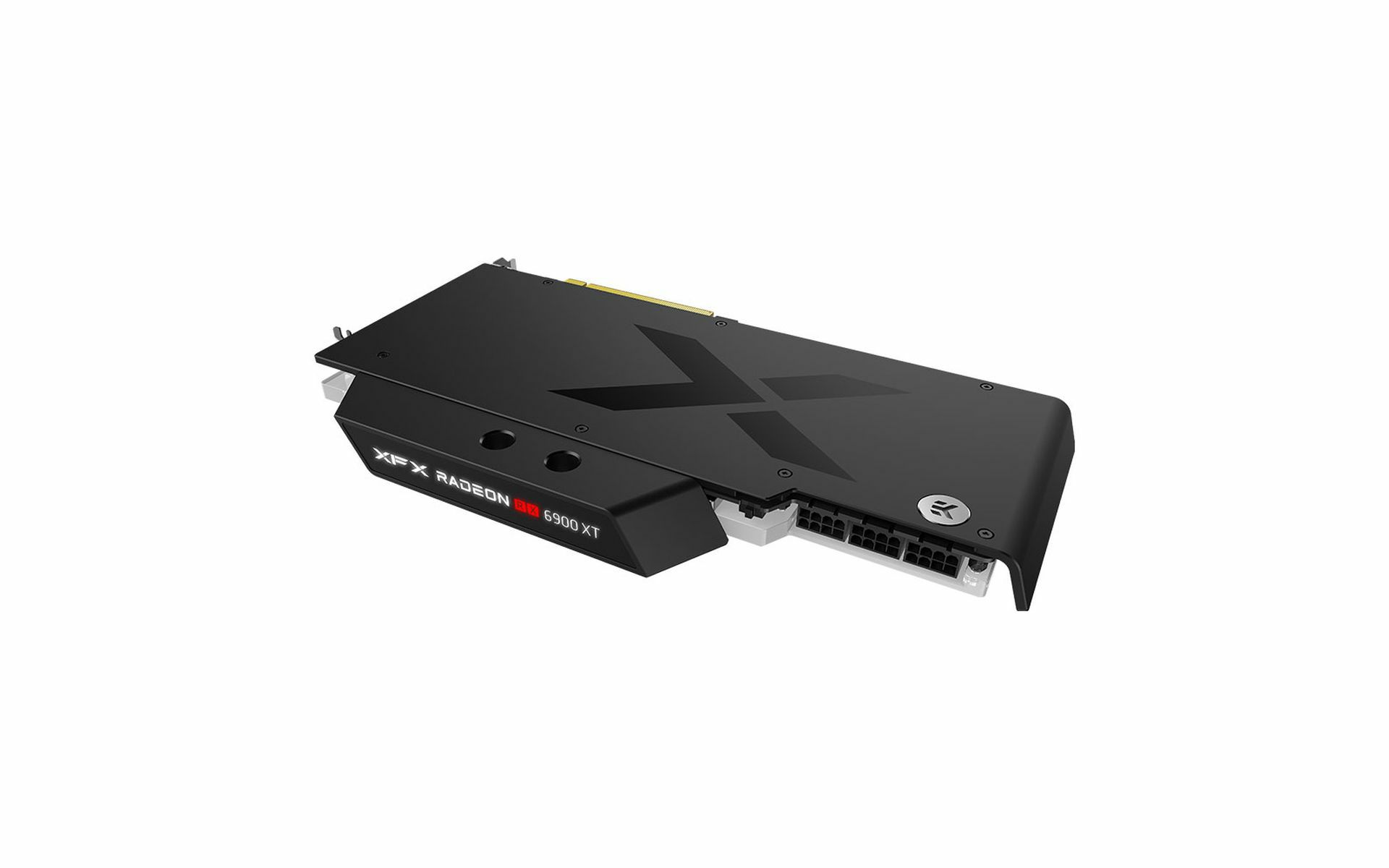

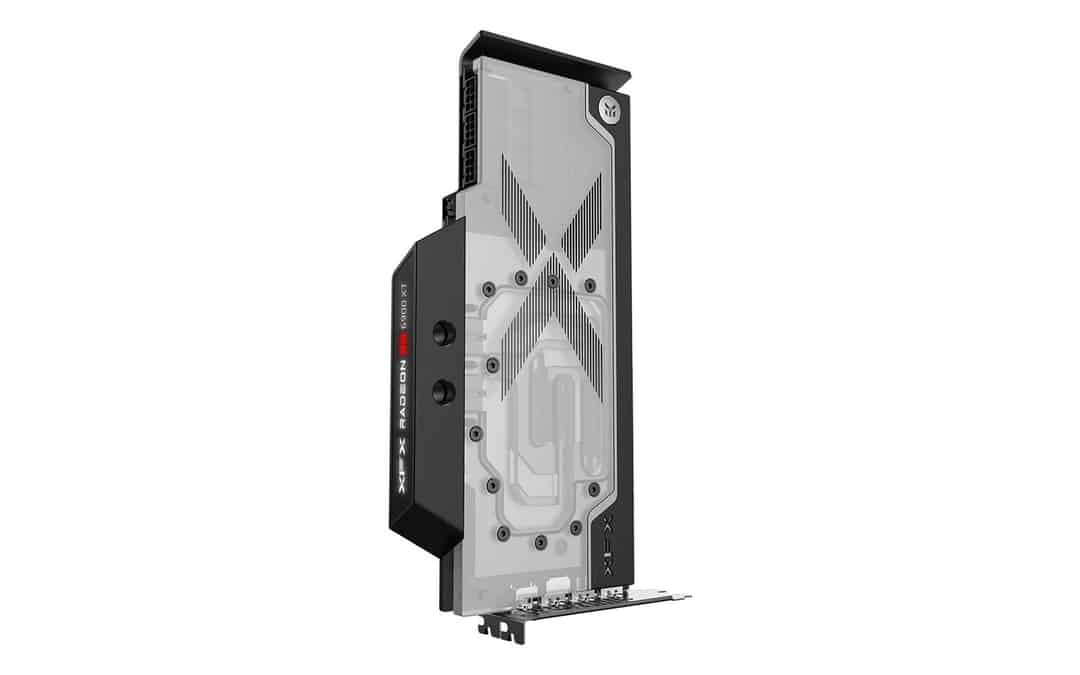

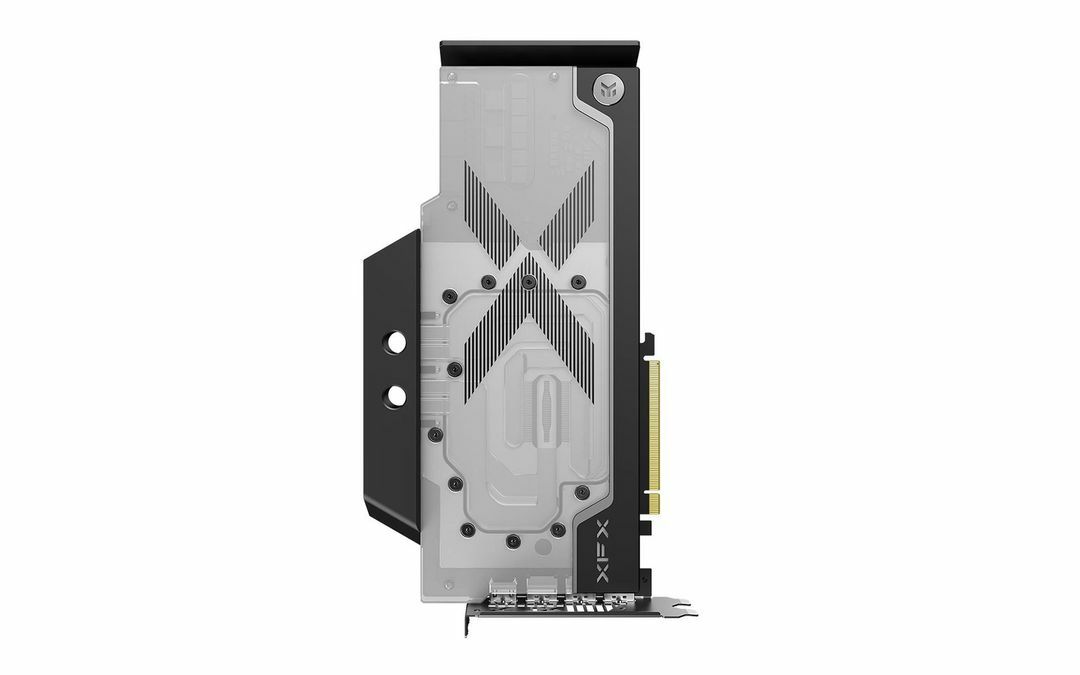

We partnered with EK, the undisputed leader in GPU liquid cooling, to design and build this one of a kind, high quality, high performance GPU and EK waterblock combo to push the performance of the 6000 series beyond its limits with the highest overclocking potential available today for any Radeon RX GPU. a. The base of the block is CNC-machined out of nickel-plated high-grade copper, while its top is CNC-machined out of glass-like cast Acrylic. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.
SUPERIOR AESTHETICS
The Speedster series exemplifies a modern style though clean and elegant design. This is no exception with the Zero WB series which features a precisely engineered and beautifully designed waterblock from EK, the industry leader in GPU liquid cooling solutions.
FULL ADDRESSABLE RGB CONTROL
The XFX Zero Watberblock features fully addressable RGB lighting. It is compatible with many popular RGB sync technologies from major motherboard manufacturers.
XFX DUAL BIOS READY
We know enthusiast like options, so for our XFX Zero WB RX 6900 series graphics cards we are offering dual BIOS . Giving a backup BIOS in the case of a failed BIOS update.
EXTREME STABILITY AND OVERCLOCKING
14+2 Phase Power Design implements a larger V-Core than the AMD reference spec so it's able to provide you with more stable gameplay by better distributing power across more VRMs which results in more headroom. This allows the GPU to operate cooler at baseline but also have tremendous room to overclock.
AMD RDNA™ 2 ARCHITECTURE
AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
VIVID VISUALS
AMD Radeon™ RX 6900 XT graphics cards pull you into the action with immersive gaming technologies and support for DirectX® 12 Ultimate. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.
AMD SMART ACCESS MEMORY
Get more performance through new levels of communication between AMD Ryzen™ desktop processors and AMD Radeon™ graphics cards over PCI Express.

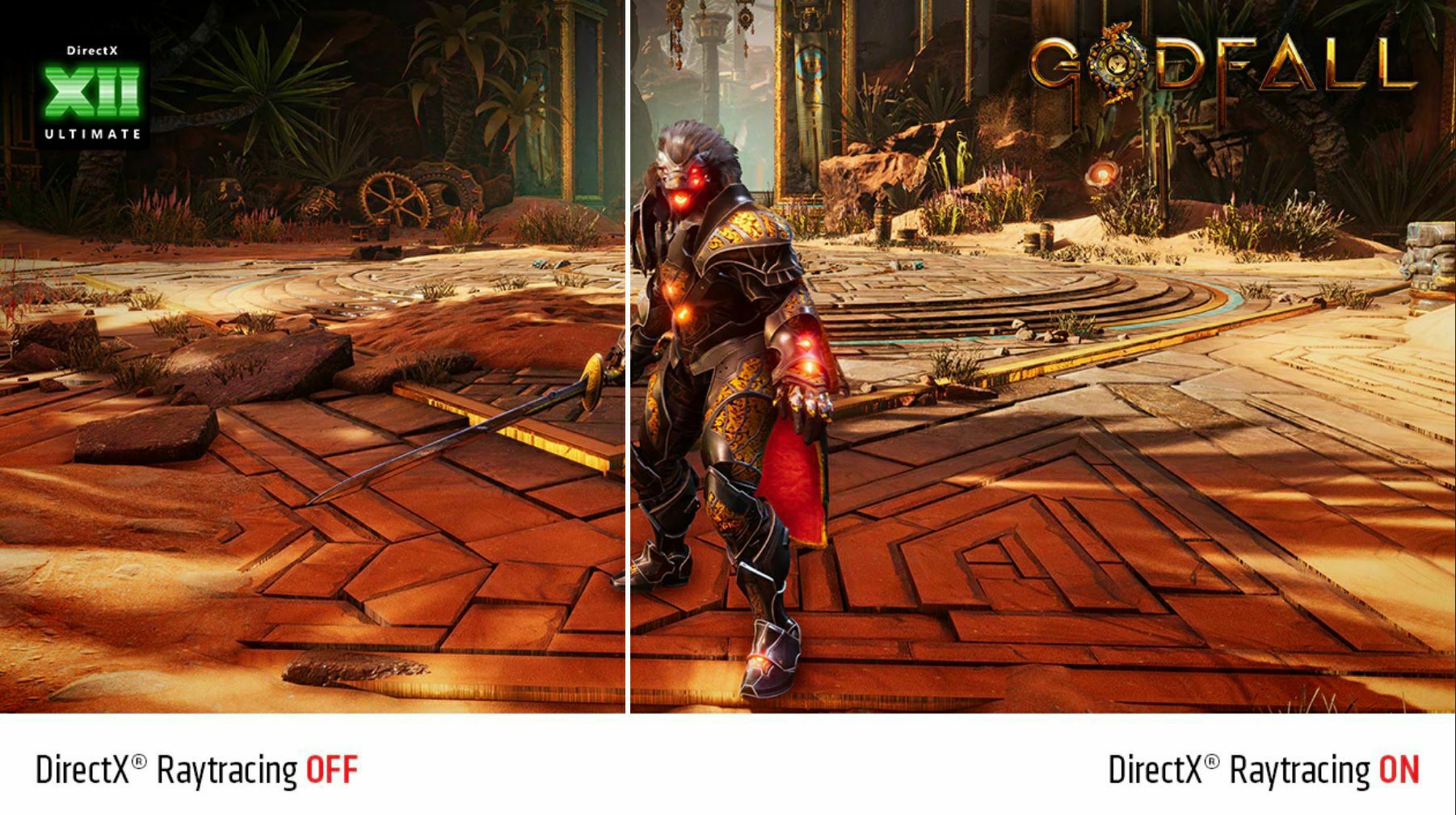

REAL TIME RAY TRACING
AMD Radeon RX 6000 Series graphics cards with enhanced RDNA 2 compute units featuring Ray Accelerators are optimized to deliver real-time lighting, shadow, and reflection realism with DirectX Raytracing, the new standard for next generation gaming visuals to increase visual quality in gaming.
GET A BOOST IN FRAMES FOR YOUR GAMES.
AMD FidelityFX Super Resolution (FSR) boosts your frame rates 2.4X on average in FSR supported games with high-quality, high-resolution gaming experiences delivered by AMD Radeon RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance. Visit https://www.amd.com/en/technologies/radeon-software-fidelityfx-super-resolution/ for more information.
AMD INFIINITY CACHE
A revolutionary new memory level in RDNA 2 architecture. 128mb of AMD Infinity Cache enables high bandwidth performance at low power and low latency, with 2.17x the bandwidth/power compared to 384-bit GDDR6.
AMD SMART ACCESS MEMORY
Get more performance in select titles through new levels of communication between AMD Ryzen desktop processors and AMD Radeon graphics cards over PCI-E 4.0.
HIGH PERFORMANCE 4K GAMING
With up to 80 enhanced compute units delivery powerhouse performance, 4k gaming is now easily possible at smooth framerates and maximum visual settings.
GDDR6 MEMORY FOR ADVANCED GAMING
Equipped with 16GB of advanced GDDR6 memory to provide high bandwidth performance, enabling 4k performance for today's most demanding games.
PCI EXPRESS 4.0 SUPPORT
The AMD Radeon™ RX 6000 Series graphics cards feature PCIe® 4.0, with a throughput of 16GT/s which enables two times the bandwidth when compared to PCIe® 3.0
500 MILLION GAMERS PLAY ON AMD RADEON
AMD FidelityFX is a robust set of visual enhancement effects, optimized for AMD Radeon™ RX 6000 Series graphics cards.
AMD RADEON™ IS WINDOWS 11 READY
Windows® 11 is created for the ultimate PC gaming, featuring superior graphics, amazing speed, and an incredible selection of games. Windows 11 includes gaming features like DirectX® 12
XFX 3 YEAR WARRANTY
Even though we trust that our high quality products will continue working at peak performance well beyond the use of it, we want to put our word behind that promise. That is why we offer our 3 Year Warranty with this series of graphics cards. This means that your product is protected by a 3 year limited hardware warranty on manufacturing defects of anything on the card.
DRIVERS AND SUPPORT
DRIVERS

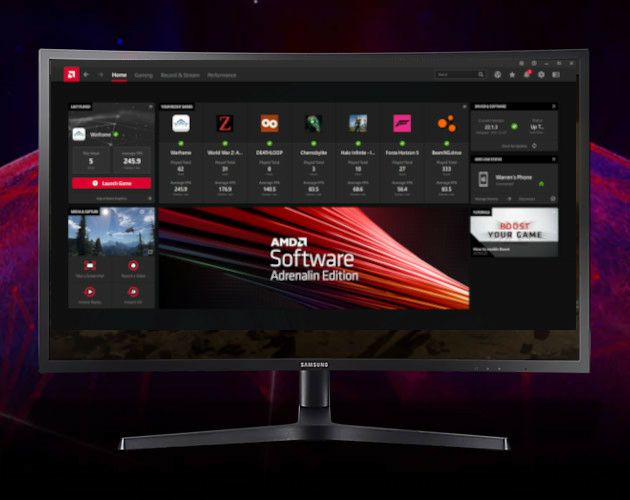

Download the latest version of AMD Software: Adrenalin Edition and take advantage of performance enhancing features like Radeon™ SuperResolution, Radeon™ Boost and Radeon™ Anti-Lag, as well as optimized game day-0 drivers.
